High Pressure Stainless Misting System For Fire Suppression

Product Details

Place of Origin: Guangzhou,Guangdong,China

Brand Name: RUIGANG

Certification: CCC/ISO/CMA/CAL/CNAS

Model Number: XSWBG672/14-RG

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Plywood outer box with bubble bag or paper

Delivery Time: 10~15 working days

Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card

Supply Ability: 300sets per month

Get Best Price
Contact Now
Specifications
Highlight:

fire suppression high pressure stainless misting system

,

high pressure stainless misting system Fire Suppression

,

fire suppression high pressure misting system

Water Pumps (pc):
6+1(standby)
Activation Method:
Automatic Or Manual
Application:
Fire Suppression
Jockey Pumps (PC):
2
Pump Material:
Stainless Steel
Rated Pressure:
14MPa
Nozzle Material:
Stainless Steel
Water Source:
Water Supply
Size:
3940mm*1100mm*2000mm
Water Pumps (pc):
6+1(standby)
Activation Method:
Automatic Or Manual
Application:
Fire Suppression
Jockey Pumps (PC):
2
Pump Material:
Stainless Steel
Rated Pressure:
14MPa
Nozzle Material:
Stainless Steel
Water Source:
Water Supply
Size:
3940mm*1100mm*2000mm
Description

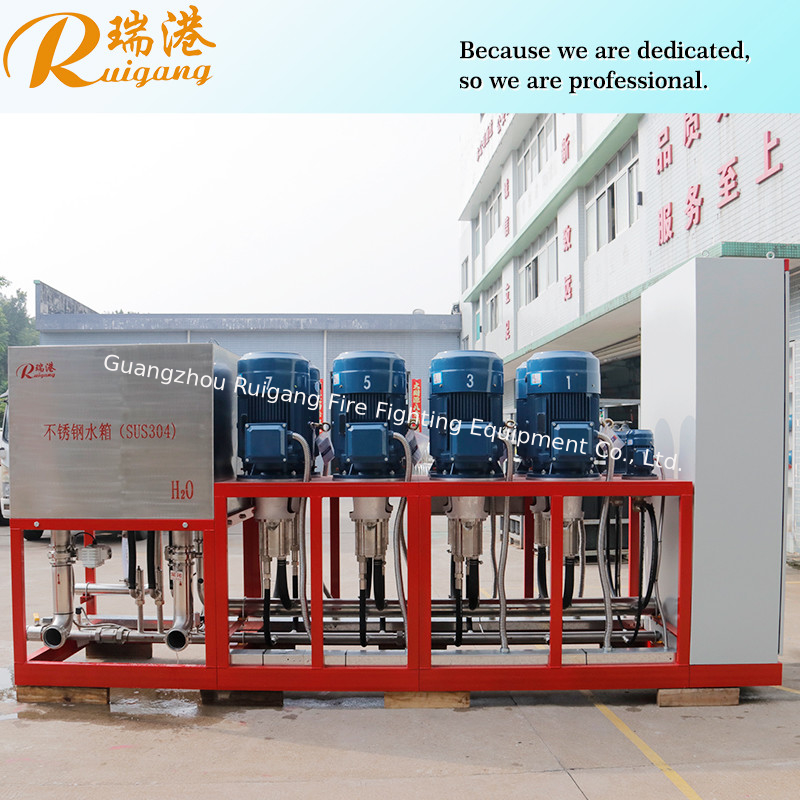

High Pressure Stainless Misting System For Fire Suppression

Pressure Stainless Steel Water Mist System for Effective Fire Suppression

Product Description:

Equipped with a high-pressure pump, this water mist system is capable of producing a powerful stream of water mist at a rated pressure of 14MPa, making it one of the most reliable fire suppression systems in the market today. Its water source comes from a reliable water supply, ensuring that there is always enough water to put out any fire that may occur.

One of the best things about this High-pressure water mist system is that it can be activated in two ways - either automatically or manually. This means that in the event of a fire, the system can be activated quickly and efficiently without the need for human intervention, thus ensuring that potential damage is minimized.

Designed as a water mist system, this product is highly effective in suppressing fires of various types, including those caused by electrical faults, flammable liquids, and solid combustibles. Its high-pressure pump ensures that the water mist is delivered at a high velocity, thereby ensuring that the fire is quickly extinguished without causing any damage to the surrounding area.

So if you're looking for a reliable and effective fire suppression system, look no further than the High-pressure water mist system. With its high-pressure pump, automatic/manual activation method, and water supply source, this product is sure to provide you with the peace of mind you need to keep your property safe from fire.



Features:

  • Product Name: High-pressure water mist system
  • Activation Method: Automatic Or Manual
  • Rated Flow: 672 L/min
  • Type: Water Mist System
  • Rated Pressure: 14MPa
  • Application: Fire Suppression


Technical Parameters:

Attribute Value
Type High-pressure water mist system
Model XSWBG672/14-RG
Application Fire Suppression
Rated Pressure 14MPa
Jockey pumps (PC) 2
Nozzle Type Mist Nozzle
Water pumps (pc)6 +1 (standby)
Nozzle Material Stainless Steel
Power 30x6(KW)
Pump Type High-pressure Pump


Applications:

The High-pressure water mist system is an ideal choice for many different environments, including residential, commercial, and industrial settings. It is especially effective in areas where traditional sprinkler systems may not be practical or desirable, such as server rooms, museums, archives, and libraries. The system can be activated automatically or manually, depending on the user's preference and the specific application.

The High-pressure water mist system is designed to deliver a fine mist of water at high pressure, which helps to extinguish fires quickly and efficiently. It is capable of achieving a rated pressure of 14MPa, thanks to its powerful jockey pumps (2 PC) and 30x6 KW power. This makes it one of the most effective fire suppression systems available today.

Whether you are looking for a reliable and effective fire suppression system for your home or your business, the High-pressure water mist system from RUIGANG is the perfect choice. With its high-quality construction, certification, and supply ability of 300 sets per month, you can rest assured that you are getting a product that is both reliable and effective.

Payment terms for the High-pressure water mist system include L/C, D/P, T/T, Western Union, Paypal, and Credit card. Contact us today to learn more about this innovative fire suppression system and how it can benefit your home or business.



Packing and Shipping:

Product Packaging:

The high-pressure water mist system will be securely packaged to prevent any damage during shipping. The components will be wrapped in protective material and placed in a sturdy cardboard box.

Shipping:

The high-pressure water mist system will be shipped via a reputable courier service to ensure safe and timely delivery. Customers will receive a tracking number via email to monitor their shipment. Delivery times may vary depending on the destination.
